QUARTZ CRYSTALS

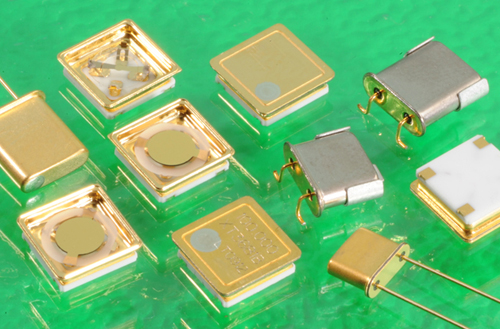

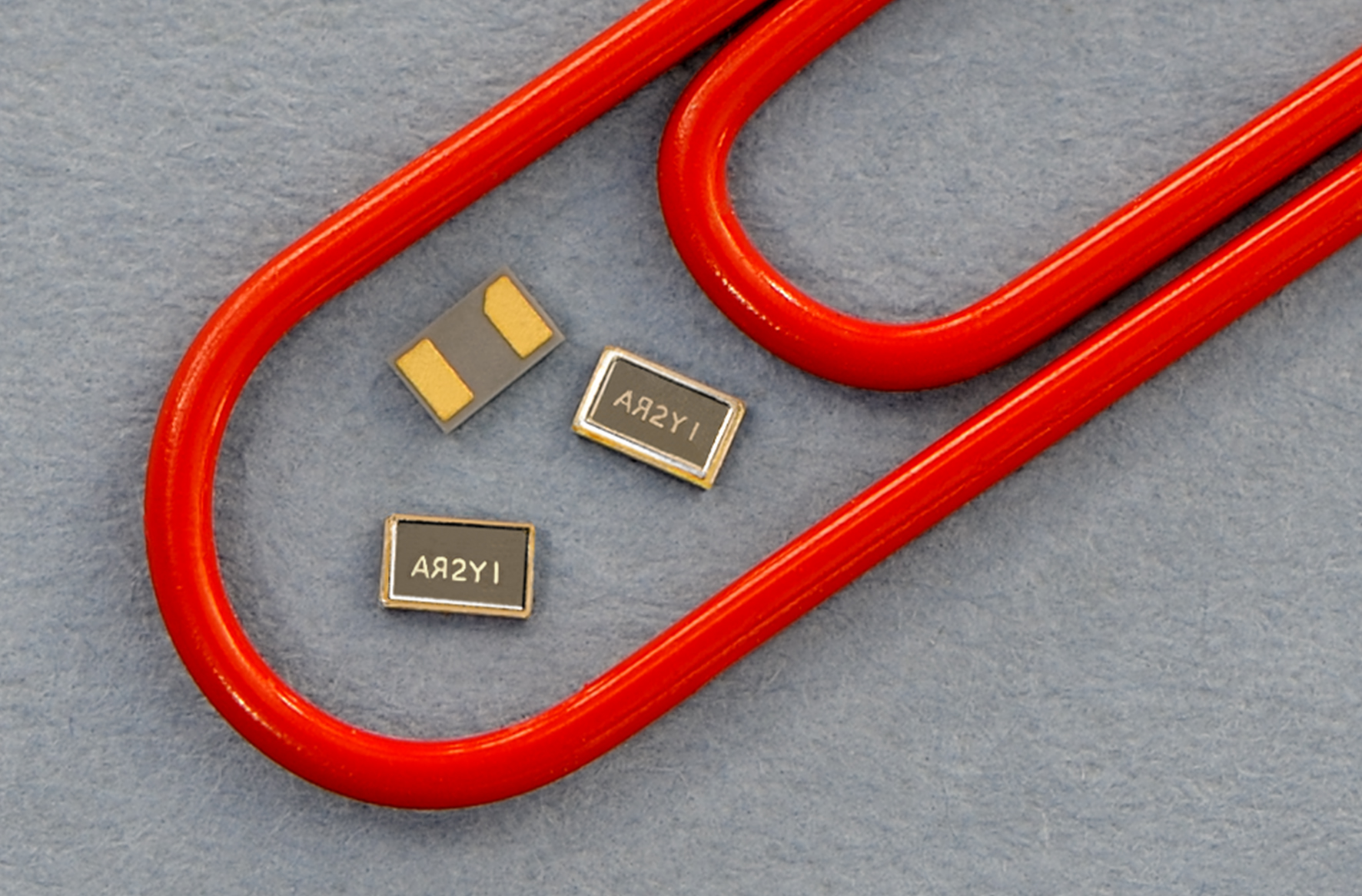

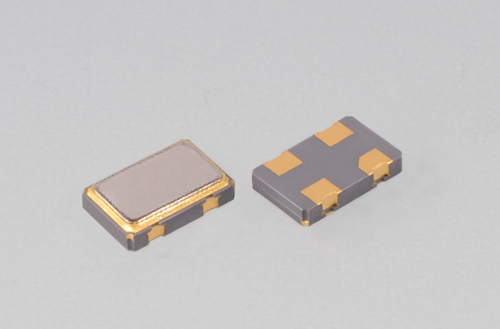

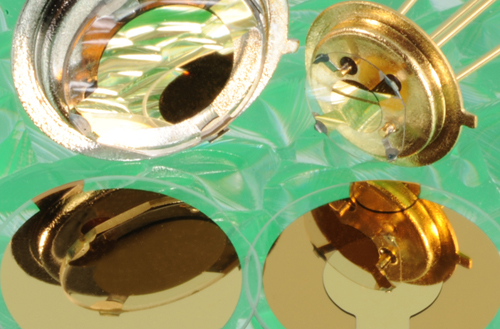

River Eletec Corporation produce the world’s smallest smd precision quartz crystals with sizes from (1.2 x 1.0)mm and 0.33mm in height. Packaged in ceramic and metal vacuum sealed packages for ultimate reliability with a high resistance to mechanical shock and vibration due to their low mass. Frequencies range from the ubiquitous 32.768kHz to 80MHz for fundamental designs. Continuous research and product development maintains the leadership in quality and minimal size together with exceptional customer support.

Precision quartz crystals, high stability HI-REL quartz crystals, SC cut, BT cut, IT cut and AT cut crystals, miniature precision crystals, HC-43/U, HC-26/U, low profile miniature smd crystals, low phase noise SC cut quartz crystals, low ageing crystals, low phase noise. Glass, resist weld and cold weld cases, vacuum sealed.



MICRO smd quartz crystals

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
TFX-02S (3.2 x 1.5)mm, Height 0.8mm
Tuning fork crystal, weight 10.6mg
seam sealing method
tolerance from ±10ppm(-40 +85)°C
32.768kHz Data sheet
TFX-03 (2.0 x 1.2)mm, Height 0.6mm
Tuning fork crystal
tolerance from ±10ppm(-40 +85)°C
32.768kHz Data sheet
TFX-03L (2.0 x 1.2)mm, Height 0.38mm
Tuning fork crystal,
tolerance from ±10ppm(-40 +85)°C
32.768kHz Data sheet
TFX-04 (1.6 x 1.0)mm, Height 0.45mm
Tuning fork crystal,
tolerance from ±10ppm(-40 +85)°C
32.768kHz Data sheet
FCX-03 (5.0 x 3.2)mm, Height 1.5mm
smd crystal, AT cut, fundamental, weight 0.06g
accuracy from ±10ppm
(8 ~ 60)MHz Data sheet
FCX-04 (3.2 x 2.5)mm, Height 0.9mm
smd crystal, AT cut, fundamental, weight 0.02g
accuracy from ±10ppm
(16 ~ 60)MHz Data sheet
FCX-04C (3.2 x 2.5)mm, Height 0.7mm
smd crystal, AT cut, fundamental, weight 0.06g
accuracy from ±10ppm
(10 ~ 60)MHz Data sheet
FCX-05 (2.5 x 2.0)mm, Height 0.6mm
smd crystal, AT cut, fundamental
tolerance from ±10ppm
(12 ~ 80)MHz Data sheet
FCX-06 (2.0 x 1.6)mm, Height 0.5mm
smd crystal, AT cut, fundamental, weight 5.6mg
accuracy from ±10ppm
(18 ~ 80)MHz Data sheet
FCX-06T (2.5 x 2.0)mm, Height 0.6mm smd crystal, AT cut, fundamental, weight 10.0mg accuracy from ±10ppm (12 ~ 80)MHz Data sheet
FCX-07 (1.6 x 1.2)mm, Height 0.45mm
smd crystal, AT cut, fundamental, weight 3.3mg
accuracy from ±10ppm
(24 ~ 80)MHz Data sheet
FCX-08 (1.2 x 1.0)mm, Height 0.33mm
smd crystal, AT cut, fundamental,
tolerance from ±7ppm
* Can meet with AEC-Q200 standard
* Suitable for Automotive Applications
(36 ~ 80)MHz Data sheet
FCX-07L (1.6 x 1.2)mm, Height 0.35mm
smd crystal, AT cut, fundamental
tolerance from ±10ppm
(26 ~ 80)MHz Data sheet



Leaded crystals

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
SC cut technical notes quartz crystals "SC cut family of quartz crystals" - technical notes ---- Data sheet
monocrystalline quartz technical notes piezoelectricity "Mono-crystalline quartz, the piezoelectric effect" - technical notes ---- Data sheet

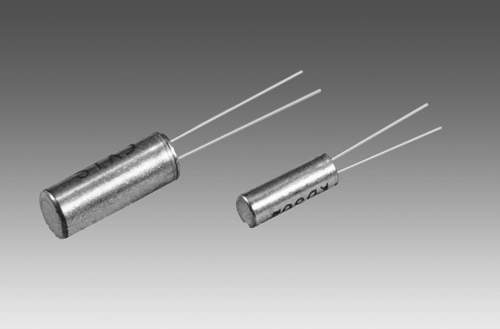

TC26 - TC38 Dia (2.0)mm, Height TC-26:6.0mm
Dia (3.12)mm, Height TC-38:8.3mm
watch crystal cylindrical case - flexure mode
±30ppm at +25°C, -0.042ppm/°C² (-10 +60)°C
standard load 12.5pF
32.768kHz Data sheet

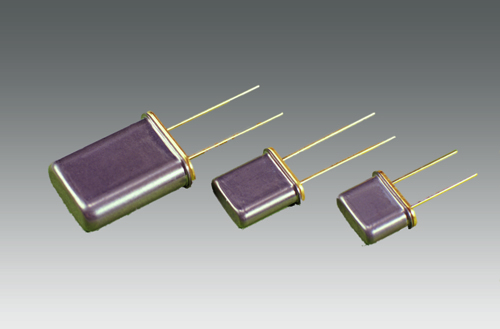

Precision crystal units (7.9 x 3.2)mm, Height UM1:8.1mm
(7.9 x 3.2)mm, Height UM5:6.0mm
(11.05 x 4.65)mm, Height HC49:13.46mm
Precision crystal units
resistance weld packages
calibration tolerance from 5ppm
temperature tolerance from±3ppm
(8 ~ 250)MHz Data sheet

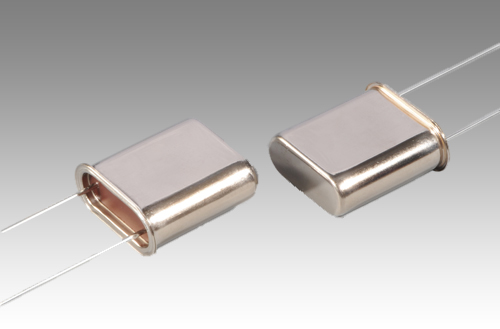

HC-47/U (19.43 x 9.14)mm, Height 19.70mm
HC-47/U cold weld quartz crystal
AT cut
(2 ~ 125)MHz Data sheet

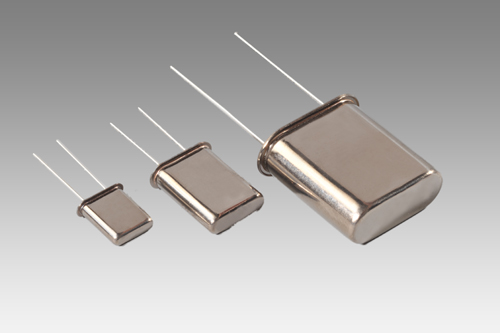

Low frequency crystal units (7.9 x 3.2)mm, Height UM1:8.1mm
(19.0 x 8.7)mm, Height HC51:19.5mm
(11.05 x 4.65)mm, Height HC49:13.46mm
Low frequency crystal units
calibration tolerance from ±100ppm
temperature tolerance from±100ppm
100kHz ~ 1.8432MHz Data sheet

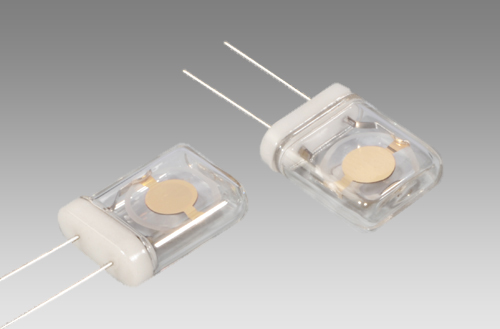

HC-26/U glass (13.46 x 4.65)mm, Height 10.40mm
HC-26 glass precision crystal units, very low ageing
calibration tolerance from ±2ppm
temperature tolerance from±3ppm
AT cut, SC cut, IT cut
(3 ~ 200)MHz Data sheet

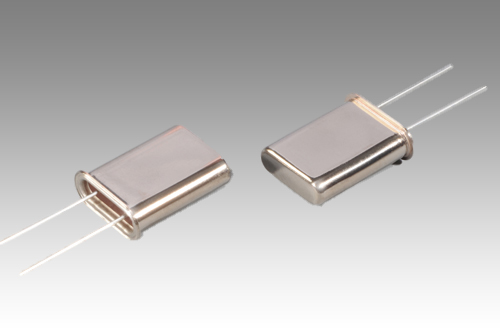

HC-43/U (11.05 x 4.65)mm, Height 13.46mm
HC-43/U cold weld quartz crystal
AT cut, SC cut, IT cut
(6 ~ 220)MHz Data sheet

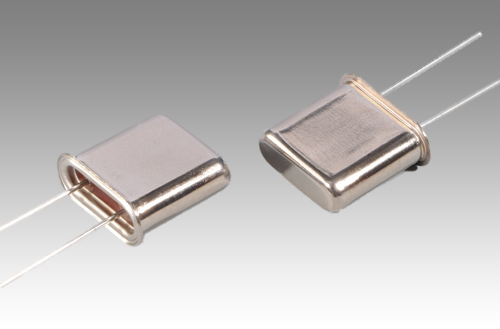

HC-43-T (11.05 x 4.65)mm, Height 10.25mm
HC-43-T reduced profile cold weld crystal
AT cut, SC cut, IT cut
(6 ~ 220)MHz Data sheet

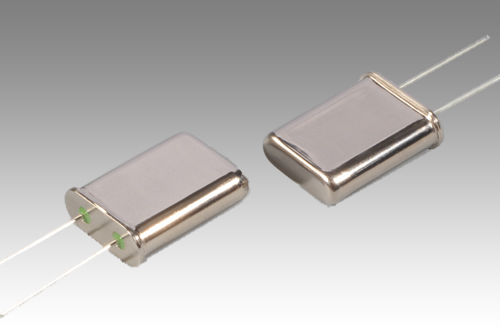

HC-49/U (11.05 x 4.50)mm, Height 13.46mm
HC-49/U resistance weld quartz crystal, AT cut
(3 ~ 220)MHz Data sheet

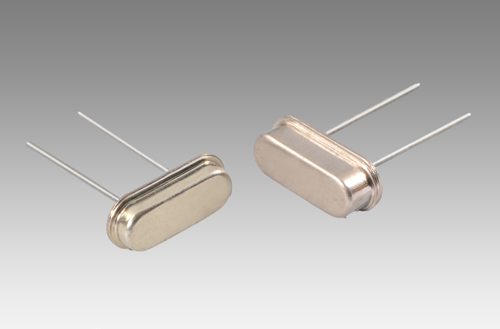

XO - XI (11.05 x 4.65)mm, Height XO:2.5mm, XI:3.51mm
Low profile resistance weld crystal units
calibration tolerance from ±5ppm
temperature tolerance from ±5ppm
(3.5 ~ 90)MHz Data sheet

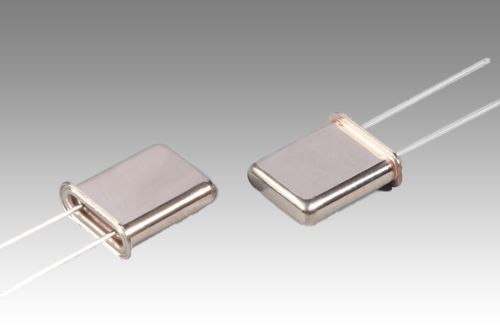

HC-45/U (8.13 x 3.30)mm, Height 8.64mm
HC-45/U miniature cold weld precision quartz crystal
AT cut, SC cut, IT cut
(8 ~ 220)MHz Data sheet

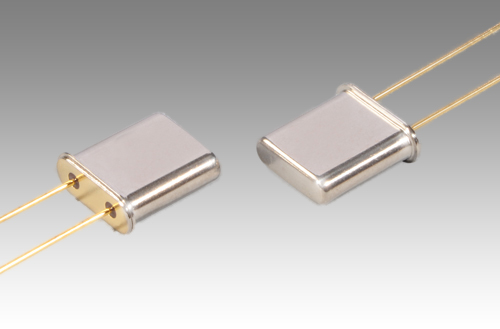

UM-1 (7.9 x 3.2)mm, Height 8.1mm
UM-1 miniature resistance weld crystal
AT cut, SC cut, lead pre-form and variations
(6 ~ 220)MHz Data sheet

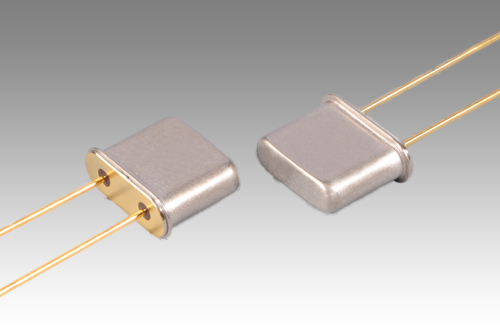

UM-5 (7.9 x 3.2)mm, Height 6.0mm
UM-5 resistance weld quartz crystal
AT cut, SC cut, IT cut, pre-form lead variations
(13 ~ 220)MHz Data sheet

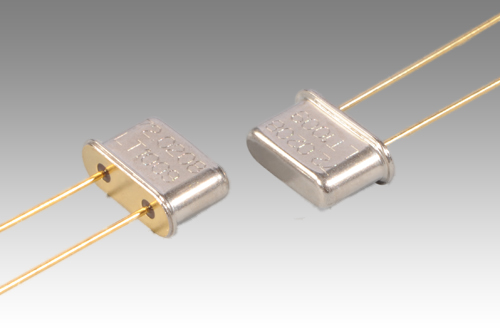

UM-4 (7.9 x 3.2)mm, Height 4.7mm
UM-4 resistance weld quartz crystal, AT cut
(15 ~ 120)MHz Data sheet
UM-1 slimline (7.50 x 2.6)mm, Height 8.1mm
UM-1 ultra slim resistance weld crystal
AT cut, SC cut, IT cut
(6 ~ 220)MHz Data sheet

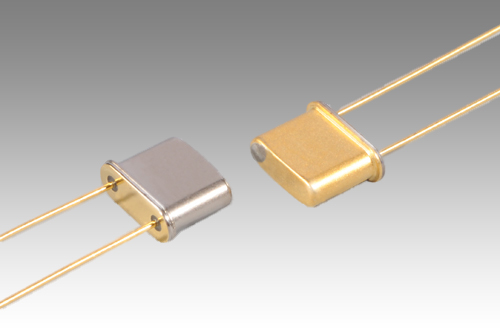

LT-4 (6.16 x 2.38)mm, Height 4.40mm
LT-4 subminiature crystal
calibration tolerance from ±10ppm
temperature tolerance from ±3ppm
(24 ~ 200)MHz Data sheet

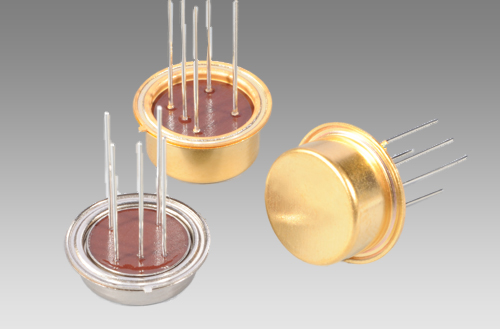

HC-37/U Dia (15.36)mm, Height 6.65mm, 4.40mm, 3.912mm
HC-37/U ultra precision cold weld quartz crystal
AT cut, SC cut, IT cut, Available in three heights
(6 ~ 120)MHz Data sheet

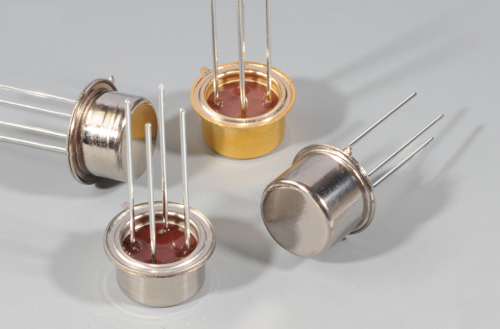

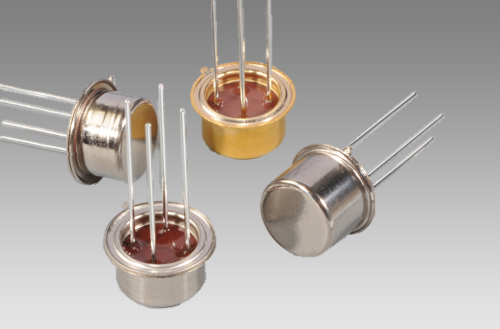

HC-35/U Dia (5.08)mm, Height 6.75mm
HC-35/U cold weld precision crystal units
calibration tolerance from ±5ppm
temperature tolerance from±3ppm
suitable for very high shock and vibration applications
(5 ~ 200)MHz Data sheet



SMD Crystals

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE

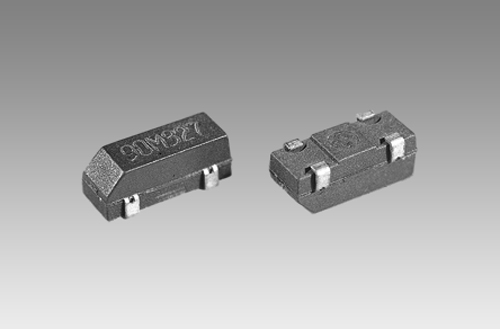

CM200S (8.0 x 3.4)mm, Height 2.5mm
smd watch crystal
low profile plastic package, flexure mode
32.768kHz Data sheet

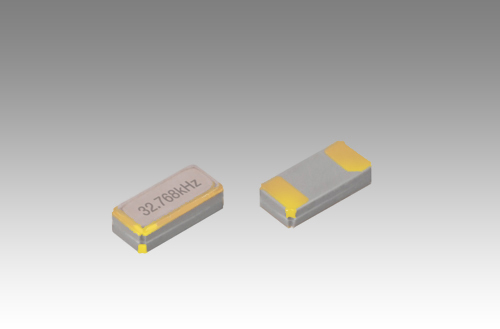

XD (2.0 x 1.2)mm, Height XD21:0.6mm
(3.2 x 1.5)mm, Height XD31:0.9mm
(4.2 x 1.5)mm, Height XD41:0.9mm
XD series smd watch crystal
ultra low profile ceramic package, vacuum seal
32.768kHz Data sheet
MG3A (13.10 x 5.0)mm, Height 5.0mm
smd quartz crystal, encapsulated cold weld package
AT and BT cut, automotive reliability
standard and custom frequencies
(3.579 ~ 90)MHz Data sheet

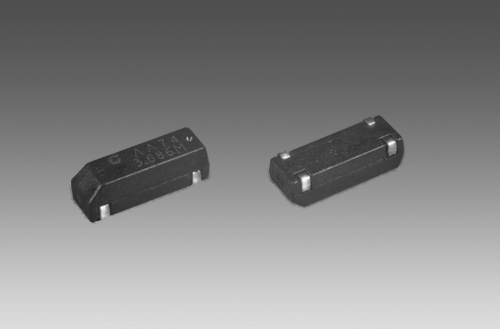

CM309S (12.5 x 4.6)mm, Height 3.7mm
smd quartz crystal AT cut
low profile encapsulated, standard specification
(3.50 ~ 70)MHz Data sheet

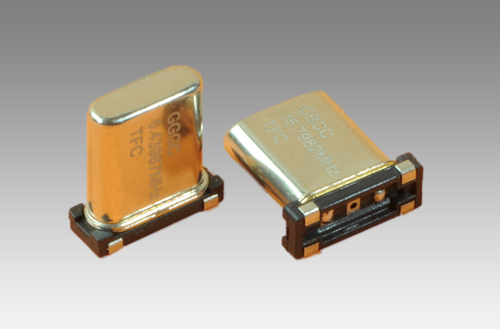

49SXF (11.4 x 5.0)mm, Height 15.2mm
smd HC-49/U crystal assembly
AT cut and BT cut
(1.8 ~ 250)MHz Data sheet

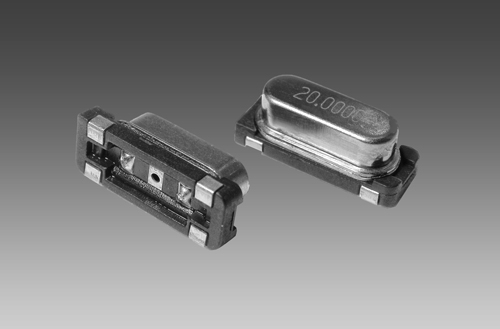

49SX (11.4 x 5.0)mm, Height SXK:5.2 mm, SXT:4.2 mm
low profile resistance weld smd crystal
AT and BT cut, automotive reliability
standard and custom frequencies
(3.2 ~ 90)MHz Data sheet

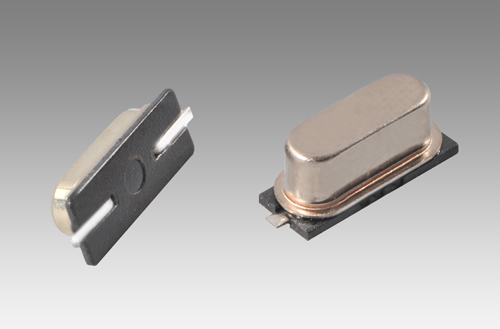

XP - XJ (11.4 x 4.7)mm, Height XP:2.35mm, XJ:3.6mm
low profile smd crystal, AT and BT cut
standard and custom frequencies
(3.5 ~ 90)MHz Data sheet
SMX-8 (8.10 x 7.08)mm, Height 2.3mm
SMX-8 smd ceramic kovar AT cut crystal
(6 ~ 220)MHz Data sheet

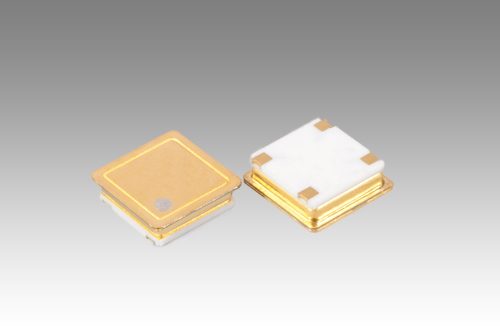

SMP-8 (8.10 x 7.08)mm, Height 2.3mm
SMP-8 smd ceramic kovar braze seal crystal
AT cut, SC cut, IT cut
(8 ~ 130)MHz Data sheet

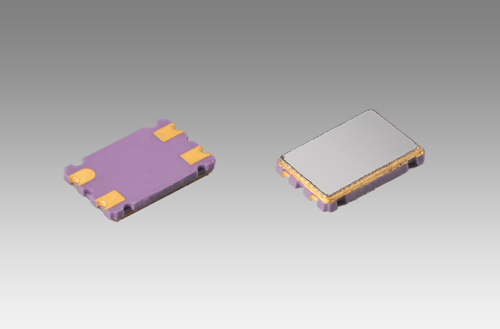

XC (7.0 x 5.0)mm, Height 1.2mm
smd sub-miniature crystal
ceramic metal package
(8 ~100)MHz Data sheet

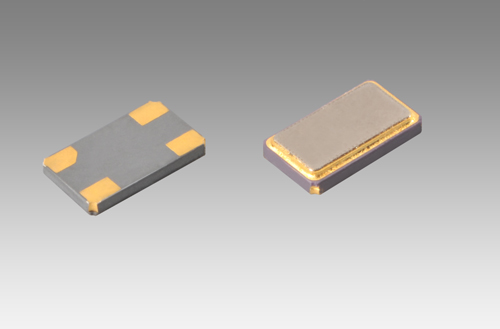

XR (6.0 x 3.5)mm, Height 1.0mm
sub-miniature smd crystal
tight tolerance, ceramic metal package
(9.60 ~ 125)MHz Data sheet

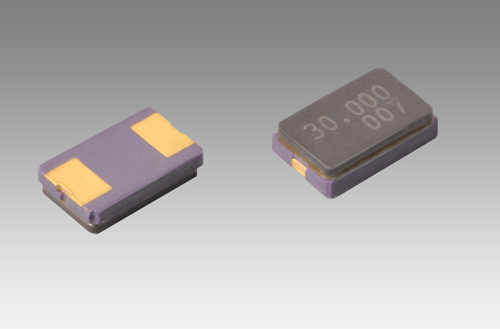

XS (5.0 x 3.2)mm, Height 1.4mm, two pads
sub-miniature smd crystal
ceramic package, glass seal
(10 ~ 50)MHz fundamental Data sheet

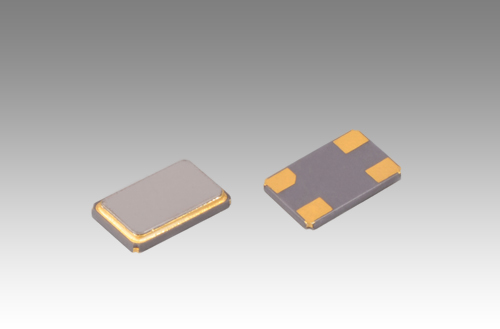

XV (5.0 x 3.2)mm, Height 0.9mm
sub-miniature smd crystal
ceramic metal package, tight tolerance
(8 ~ 400)MHz fundamental Data sheet
XW (4.0 x 2.5)mm, Height 0.85mm
sub miniature smd quartz crystal
ultra thin, ceramic package, vacuum seal
(12 ~ 36.864)MHz fundamental Data sheet
XX (3.2 x 2.5)mm, Height 0.7mm
sub miniature smd quartz crystal
ultra thin smd crystal, ceramic package, vacuum seal
(12 ~ 400)MHz fundamental Data sheet
XY (2.5 x 2.0)mm, Height 0.6mm
micro miniature smd quartz crystal
ultra thin, ceramic package, vacuum seal
(16 ~ 54)MHz fundamental Data sheet

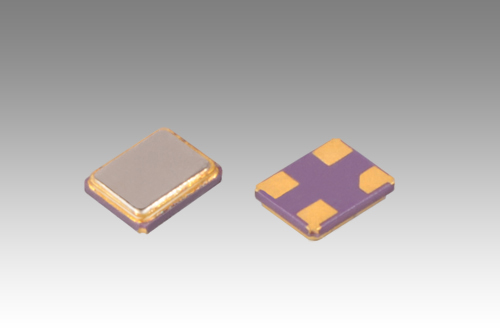

XZ (2.05 x 1.65)mm, Height 0.45mm
micro miniature smd quartz crystal
ultra thin, ceramic package, vacuum seal
(20 ~ 50)MHz Data sheet
XT (1.6 x 1.2)mm, Height 0.35mm
micro miniature smd quartz crystal
ultra thin, ceramic package, vacuum seal
(26 ~ 54)MHz Data sheet
