MICRO smd clock OSCILLATORS and STANDARD CLOCKS

River Eletec Corporation produce the world's smallest smd precision clock oscillators with sizes from (1.6 x 1.2)mm and 0.7mm in height. Packaged in ceramic and metal vacuum sealed packages for ultimate reliability with a high resistance to mechanical shock and vibration due to their low mass. Frequencies range from 10MHz to 400MHz with standard and custom designs and accuracy from ±50ppm. Continuous research and product development maintains the leadership in quality and minimal size together with exceptional customer support.

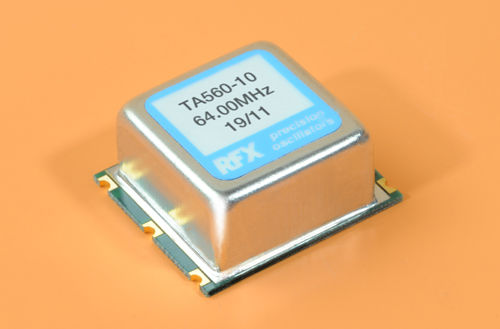

An eclectic selection of commercial and precision smd oscillators together with basic clock oscillators offering standard and custom designs from 34kHz ~ 1GHz.

The designs include clocks, OCXO, TCXO and VCXO models and specifications for accuracy, wide pulling range, miniature size and Hi-rel.



MICRO smd clock oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
FCXO-75HC (7.0 x 5.0)mm, Height 2.0mm
HCSL, low jitter non PLL
±50ppm total tolerance (-40 +85)°C
3.3Vd.c. supply, output enable/ disable
100MHz Data sheet
FCXO -75PE (7.0 x 5.0)mm, Height 2.0mm
PECL, low jitter non PLL
±20ppm and ±50ppm total tolerance
3.3Vd.c. supply, output enable/ disable
(50 ~ 200)MHz Data sheet
FCXO-75LV (7.0 x 5.0)mm, Height 2.0mm
LVDS, low jitter non PLL
±20ppm and ±50ppm total tolerance
3.3Vd.c. supply, output enable/ disable
(50 ~ 162)MHZ Data sheet
FCXO-03L (5.0 x 3.2)mm, Height 1.2mm
CMOS, TTL, accuracy from ±30ppm
(2.5 ~ +3.3)Vd.c. supply output enable/ disable
(1.5 ~ 60)MHz Data sheet
FCXO-05 (2.5 x 2.0)mm, height 0.9mm.
CMOS, TTL, accuracy from ±30ppm
(1.6 ~ +3.63)Vd.c. supply, output enable/ disable
(1 ~ 80)MHZ Data sheet
FCXO-06W (2.0 x 1.6)mm, Height 0.8mm.
CMOS, TTL, accuracy from ±25ppm
(1.6 ~ +3.63)Vd.c. supply,(-40 +105)°C available
output enable/ disable
(1 ~ 80)MHZ Data sheet
FCXO-05W (2.5 x 2.0)mm, Height 0.9mm
CMOS, TTL, accuracy from ±30ppm
(1.6 ~ +3.63)Vd.c.(-40 +105)°C available
supply, output enable/ disable
(1 ~ 80)MHZ Data sheet
FCXO-06 (2.0 x 1.6)mm, Height 0.8mm
surface mount crystal oscillator, CMOS, TTL
accuracy from ±25ppm
(1.6 ~ +3.63)Vd.c. supply, output enable/ disable
(1 ~ 80)MZ Data sheet
FCXO-06T (2.0 x 1.6)mm, Height 0.8mm
surface mount crystal oscillator, CMOS,
stability from ±8ppm
* Can meet with AEC-Q200 standard
* Suitable for Automotive Applications
(2 ~ 80)MHz Data sheet
FCXO-07 (1.6 x 1.2)mm, Height 0.7mm
Weight 4.1mg. CMOS, TTL
accuracy from ±20ppm
(1.8 ~ 3.63)Vd.c. supply, output enable/ disable
(1 ~ 80)MHz Data sheet



Clock oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
OX 32.768kHz (3.2 x 2.5)mm, Height 1.10mm
smd miniature low profile clock oscillator
overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage
low jitter, low ageing
32.768kHz Data sheet
OY 32.768kHz (2.5 x 2.0)mm, Height 1.10mm
smd miniature low profile clock oscillator
overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage
low jitter, low ageing
32.768kHz Data sheet
T301 (20.5 x 12.9)mm, Height 8mm
clock oscillator, overall stability from ±5ppm
4 pin(14 pin DIL layout), 5Vd.c. supply voltage
(4 ~ 30)MHz Data sheet
OV (5.0 x 3.2)mm, Height 1.20mm
smd clock oscillator
overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c., and 3.3Vd.c. supply voltage
(0.03456 ~ 125)MHz Data sheet
OW (5.0 x 3.2)mm, Height 1.20mm
smd clock oscillator, overall stability from ±25ppm,
supply voltage 2.5Vd.c. and 3.3Vd.c.
low jitter, low ageing, output LVDS/PECL
(80 ~ 320)MHz Data sheet
OWM-LVDS/PECL (5.0 x 3.2)mm, Height 1.20mm
smd clock oscillator, overall stability from ±25ppm,
supply voltage 2.5Vd.c. and 3.3Vd.c.
low jitter, low ageing, output LVDS/PECL
*Express Delivery
(8 ~ 1500)MHz Data sheet
OWM-CMOS (5.0 x 3.2)mm, Height 1.20mm
smd clock oscillator, overall stability from ±25ppm,
supply voltage 2.5Vd.c. and 3.3Vd.c.
low jitter, low ageing, output HCMOS
*Express Delivery
(8 ~ 250)MHz Data sheet
OX (3.2 x 2.5)mm, Height 1.10mm
smd clock oscillator,overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage
tight symmetry, low jitter. Extended temperature range
(1.25 ~ 100)MHz Data sheet
OX-A (3.2 x 2.5)mm, Height 1.10mm smd miniature low profile clock oscillator, 1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage low jitter, low ageing
*overall stability from ±5ppm
(19 ~ 60)MHz Data sheet
OX-U (3.2 x 2.5)mm, Height 1.10mm smd miniature low profile clock oscillator, 1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage low jitter, low ageing
*Ultra low phase noise. Designed for audio Hi-Fi and HD audio.
(20 ~ 60) MHz Data sheet
PX (3.2 x 2.5)mm, Height 1.10mm
smd programmed clock oscillator
custom defined frequencies, tight symmetry
overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c. and 3.3Vd.c supply voltage
*Express Delivery
(1 ~ 200)MHz Data sheet
PY (2.5 x 2.0)mm, Height 1.10mm
smd programmed clock oscillator
custom defined frequencies, tight symmetry
overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c. and 3.3Vd.c supply voltage
*Express Delivery
(1 ~ 200)MHz Data sheet
OY (2.5 x 2.0)mm, Height 1.10mm
smd clock oscillator,overall stability from ±20ppm
1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage
tight symmetry, low jitter.
Extended temperature range
(1 ~ 40)MHz Data sheet
OY-A (2.5 x 2.0)mm, Height 1.10mm smd clock oscillator, 1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage tight symmetry, low jitter
*overall stability from ±5ppm
(19 ~ 60)MHz Data sheet
OY-U (2.5 x 2.0)mm, Height 1.10mm smd miniature low profile clock oscillator, 1.8Vd.c., 2.5Vd.c. and 3.3Vd.c. supply voltage low jitter, low ageing
*Ultra Low phase noise. Designed for audio Hi-Fi and HD audio.
(20 ~ 60)MHz Data sheet
