TCXO, VCXO and PLL OSCILLATORS

TCXO, VCXO and PLL oscillators incorporating Laptech Precision Inc. quartz crystals. Miniature low profile smd units, high precision TCXO, excellent phase noise, low ageing and jitter. Standard and custom designs complimenting an extensive production programme for precision OCXO and GPS synchronised reference units.



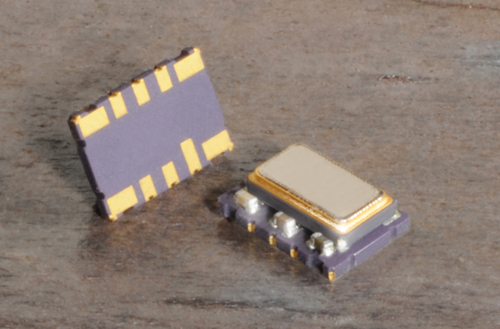

TCXO oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
TA936 - 10 (36 x 26.5)mm, Height 10mm
TCXO, AT cut, custom designs
accuracy from ±0.5ppm(0 +50)°C
wide frequency range
1MHz ~ 1GHz Data sheet
TA400 - 10 (20.75 x 20.75)mm, Height 10mm
low profile TCXO
accuracy from ±0.5ppm(0 +50)°C
custom designs, wide frequency range, hermetic seal
1MHz ~ 1GHz Data sheet
TA560 - 10 (25.4 x 22)mm, Height 10.5mm
smd AT cut TCXO
accuracy from ±0.5ppm(0 +50)°C
1MHz ~ 1GHz Data sheet
TA265 - 8.5 (20.5 x 12.9)mm, Height 8.5mm
TCXO,DIL package, custom designs
accuracy from ±1.0ppm(-10 +60)°C
screened resist weld case
(10 ~ 250)MHz Data sheet
TA (7 x 5)mm, Height typical 1.90mm
smd VCTCXO
stability from ±0.5ppm
(2.5 ~ 3.3)Vd.c. supply
pulling range ±5ppm, ±12ppm
(5 ~ 52)MHz Data sheet
TC (7 x 5)mm, Height 2mm
smd VCTCXO
stability from ±0.5ppm
(3.3 ~ 5.0)Vd.c. supply
pulling range ±5ppm min
(10 ~ 50)MHz Data sheet
TS (7.0 x 5.0)mm, Height typical 1.80mm
smd precision VCTCXO
stability from ±0.05ppm
(3.3 and 5.0)Vd.c. supply
pulling range ±5ppm and ±12ppm
(5 ~ 40)MHz Data sheet
TS stratum (7.0 x 5.0)mm, Height typically 1.90mm
stratum 3 smd TCXO
stability from ±4.6ppm over 20 years
3.3Vd.c and 5.0Vd.c. supply voltage
(5 ~ 52)MHz Data sheet
TL (5.0 x 3.2)mm, Height 1.85mm
smd TCVCXO
stability from ±0.05ppm, ±5ppm Pulling,
2.5Vd.c and 3.3Vd.c. supply
(10 ~ 52)MHz Data sheet
TW (5.0 x 3.2)mm, Height 1.65mm
smd TCXO
stability from ±0.14ppm
3.3Vd.c and 5.0Vd.c. supply
(10 ~ 40)MHz Data sheet
TV (5.0 x 3.2)mm, Height 1.2mm
smd TCXO
stability from ±0.5ppm
3.3Vd.c. and 5Vd.c. supply
(10 ~ 40)MHz Data sheet
TX (3.2 x 2.5)mm, Height 1.0mm
smd TCXO, pulling range from ± 5ppm~±10ppm
stability from ±1.0ppm
(1.8 ~ 3.3)Vd.c. supply
(10 ~ 52)MHz Data sheet
TXP (3.2 x 2.5)mm, TCXO
(10~250)MHz, HCMOS
(10~1500)MHz, LEPECL/LVDS
Excellent stability / Low jitter
*Express Delivery
(10 ~ 1500)MHz Data sheet
TXF-040-1509 (3.2 x 2.5)mm, Height 1.6mm
TXF-T (10~245)MHz, HCMOS
TXF-P (10~1450)MHz, LEPECL
TXF-D (10~1450)MHz, LVDS
*Express Delivery
(10 ~1450)MHz Data sheet
TY (2.5 x 2.0)mm, Height 0.9mm
smd VCTCXO
stability from ±0.5ppm
(1.8 ~ 3.3)Vd.c. supply
pulling range ±5ppm min
(10 ~ 52)MHz Data sheet
TYJ (2.5 x 2.0)mm, Height 0.9mm
smd TCXO
stability from ±2.5ppm
(1.8 ~ 3.3)Vd.c. supply
HCMOS o/p
(9.50 ~ 62)MHz Data sheet



VCXO oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
V936 - 10 (36 x 26.5)mm, Height 10mm
VCXO, pull range ±300ppm
high frequency
wide range of specifications and custom designs
10MHz ~ 1GHz Data sheet
V560 - 10 (25.4 x 22)mm, Height 10.5mm
smd VCXO, pull range ±300ppm
high frequency, custom designs
10MHz ~ 1GHz Data sheet
V400 - 10 (20.75 x 20.75)mm, Height 10mm
VCXO, pulling range ±300ppm
small package,custom specification
hermetic seal,high frequency
10MHz ~ 1GHz Data sheet
VF-W (20.8 x 13.2)mm, Height 5mm
VCXO, pulling range ±100ppm min
4 pin(14 pin DIL), shielded case
3.3Vd.c. and 5Vd.c. supply
(1.5 ~ 50)MHz, output TTL/ CMOS
(1.5 ~ 50)MHz Data sheet
V265 - 8.5 (20.5 x 12.9)mm, Height 8.5mm
VCXO, wide pulling range ±300ppm
4 pin(14 pin DIL) resist weld
(10 ~ 250)MHz Data sheet

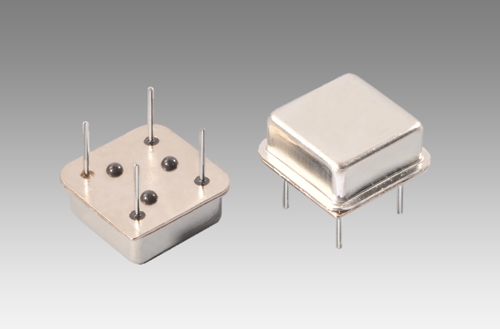

VH - W (13.2 x 13.2)mm, Height 5mm
VCXO, pulling range ±100ppm min
4 pin(8 pin DIL)
shielded case, 3.3Vd.c. and 5Vd.c. supply
output TTL/ CMOS
(1.5 ~ 50)MHz Data sheet
VT - F (7 x 5)mm, Height 1.8mm
smd VCXO
pulling range ±50ppm min
3.3Vd.c. and 5Vd.c. supply
output CMOS
(1.5 ~ 200)MHz Data sheet
VTMF (7 x 5)mm, Height 1.8mm
smd VCXO
pulling range ±50ppm min
3.3Vd.c. supply
output CMOS
(60 ~ 200)MHz Data sheet
VTM - L,V (7 x 5)mm, Height 1.8mm
smd VCXO
pulling range ±50ppm min
2.5Vd.c. and 3.3Vd.c. supply
output PECL or LVDS
(100 ~ 700)MHz Data sheet
VT - L,V (7 x 5)mm, Height 1.8mm
smd VCXO
pulling range ±50ppm min
2.5Vd.c. and 3.3Vd.c. supply
output PECL or LVDS
(1.5 ~ 200)MHz Data sheet
VW - F (5.0 x 3.2)mm, Height 1.3mm
smd VCXO
pulling range ±50ppm min
3.3Vd.c. and 5Vd.c. supply
output CMOS
(1.5 ~ 80)MHz Data sheet
VW - L,V (5.0 x 3.2)mm, Height 1.3mm
smd VCXO
pulling range ±50ppm min
3.3Vd.c. supply
output PECL or LVDS
(60 ~ 175)MHz Data sheet



PLL oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
PL936 - 15 (36 x 26.5)mm, Height 15mm
PLL, 10.00MHz reference
±1.0ppm TCXO holdover
AT cut, very wide frequency range
1MHz ~ 2.4GHz Data sheet
